Max head 120m, max flow 25L/min, 1¼" BSPF outlet 1.1kW
SOLAR POWERED

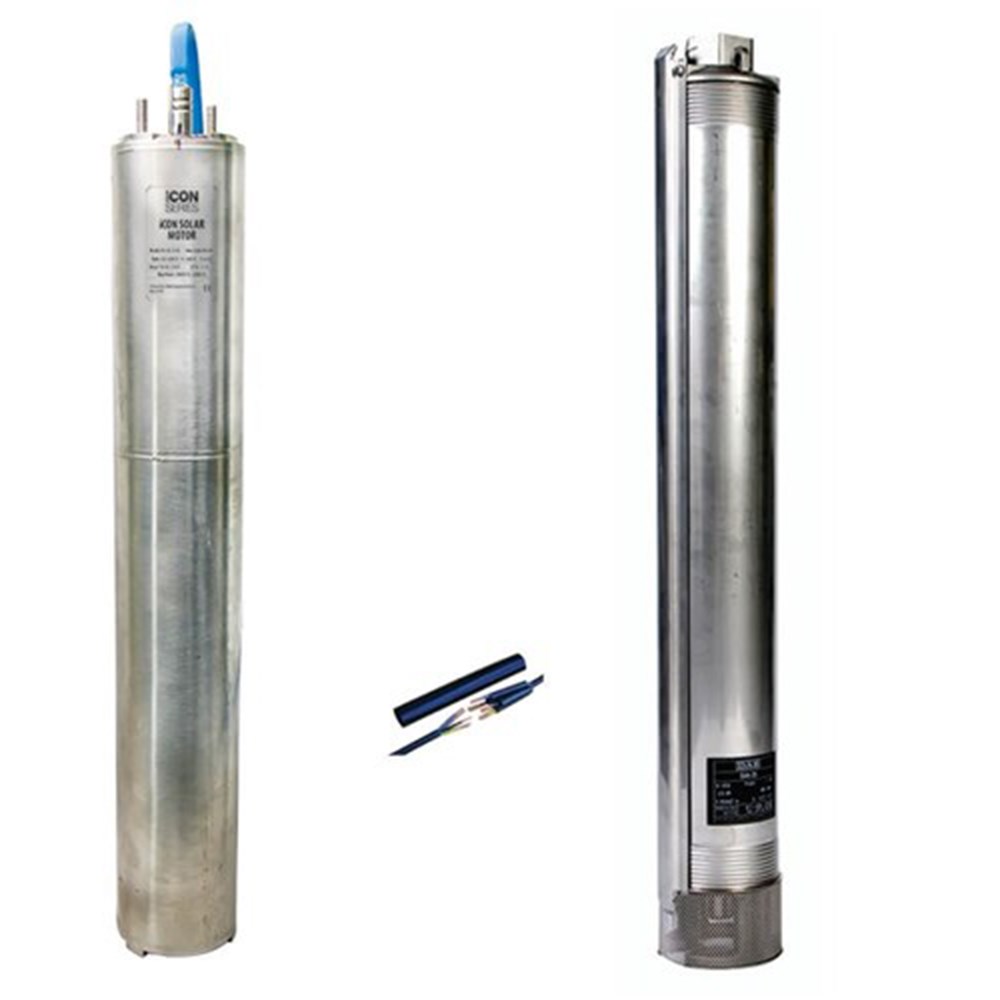

Revolutionary BLDC design, iCON solar motor powers the new DAB system for the supply of ground water based on the most widely available renewable energy, the sun.
By means of the electric power supplied by a series of photovoltaic panels and taking advantage of the combination of a DAB S4 series 4” submersible pump with a built-in inverter type controller, the system is able to ensure a continuous drawing of water from underground while the solar irradiation conditions may vary.
The permanent-magnet motor technology assures high efficiency of the system that, consequently, can require a smaller number of photovoltaic panels in order to work.
It is designed for easy use and requires no maintenance. It is the ideal solution for supplying water in remote areas, where the normal power supply of electricity to the power grid is inconsistent or completely unavailable.
We suggest you include an iCON Solar Motor Controller to enable automatic switching between DC and AC power. See suggested controllers below
Solar Arrays
To view a full list of available Solar Arrays kits in either Pole or ground mounted. All panels are 315W with 2 - 10 panel option available.
Solar Arrays
Applications
Submersible electric pumps for 4” wells or larger, capable of generating a wide range of flows and heads. These units have a very extensive range of applications for lifting, distribution, and pressurisation in domestic, farming, civil and industrial water systems, filling of pressure vessels and tanks, irrigation and fire-fighting systems. For Example: Water supply for domestic dwellings, Irrigation of gardens and nursery’s, Horticultural and agricultural water supply, Filling of storage tanks and cisterns, Extreme lifts to storage tanks and Off-grid water supplies.
DAB Borehole submersible pumps incorporate the latest technology in hydraulic design and materials to reduce running costs, extend pump life and increase serviceability.
- Technopolymer impellers and diffusers for resistance to wear and corrosion
- Floating special material abrasion wear ring reduces wear due to sand, allows easier starting
- Micro cast stainless steel support and valve body for high strength and corrosion resistance
- 4GG and 4OL single phase motors use remote starter box with manual reset overload
- Large range to suit most applications
- Floating impeller stack for easier starts in abrasive conditions
- Posi drive pump shaft improves impeller life in adverse conditions
- Maximum sand quantity = 120 gm / m3.
Product Range Brochure
View Brochure

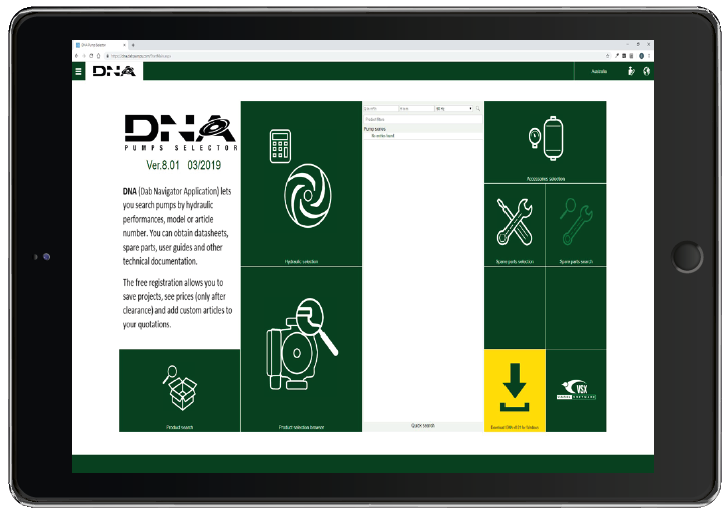

DAB Product Selector
DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.
The free registration allows you to save projects and add custom articles to your quotations.
