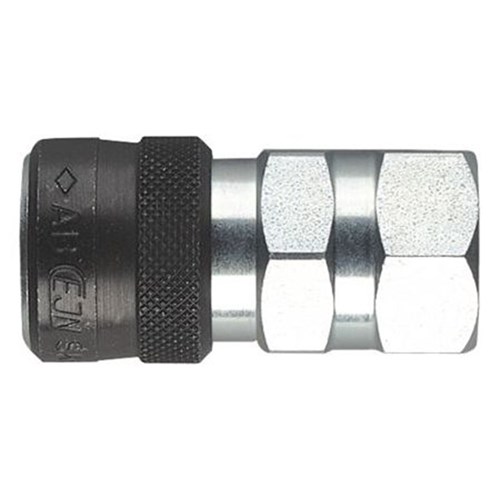

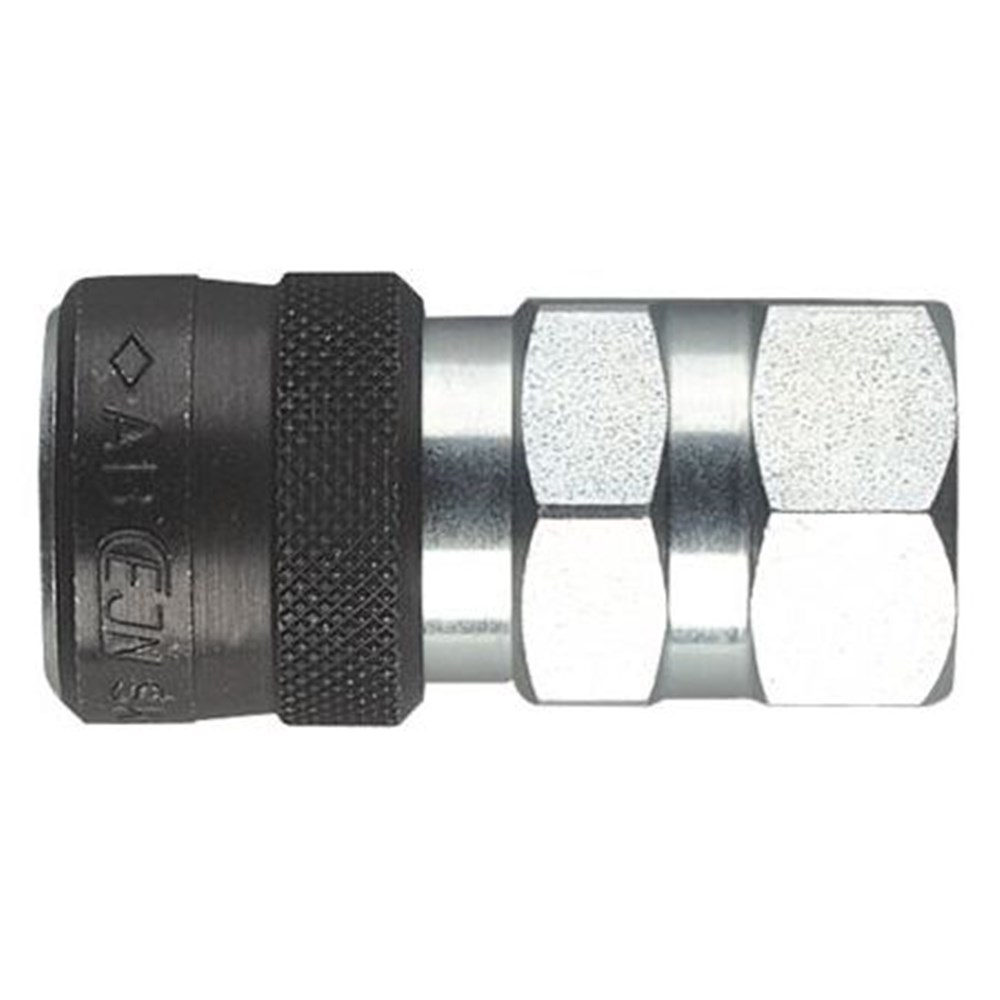

STEEL PLATED QUICK COUPLER SOCKET - CEJN Series 116 NPT Female, NBR

Product Code: QCHS-C116SF-N

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
CEJN Series 116 hydraulic quick disconnect couplings for ultra high working pressures are a standard non-drip design eliminating leaks when connecting or disconnecting couplings
  • Hardened steel socket
  • NPT female threads
  • Zinc chromate finish
  • Non-drip on connection and disconnection
  • Working pressure 21750 psi (150 Mpa)
  • Temperature range -30 to 100 degree C
  • Flow rate of 6.0 LPM
  • NBR seals
Applications:
  • Bolt tensioning
  • Bearing pullers
  • Test benches
  • Hydraulic cylinders
Technical Specifications
End Connection 1 Coupler Body
End Connection 2 NPT Female
Brand CEJN
Coupler Valve Type Double Shut-off
Keywords CEJN 116
Flow Rate - LPM 6.0
Material Steel - Plated
Seal Material NBR
Temperature Degree C -30C to +100C
Working Pressure PSI 21750
