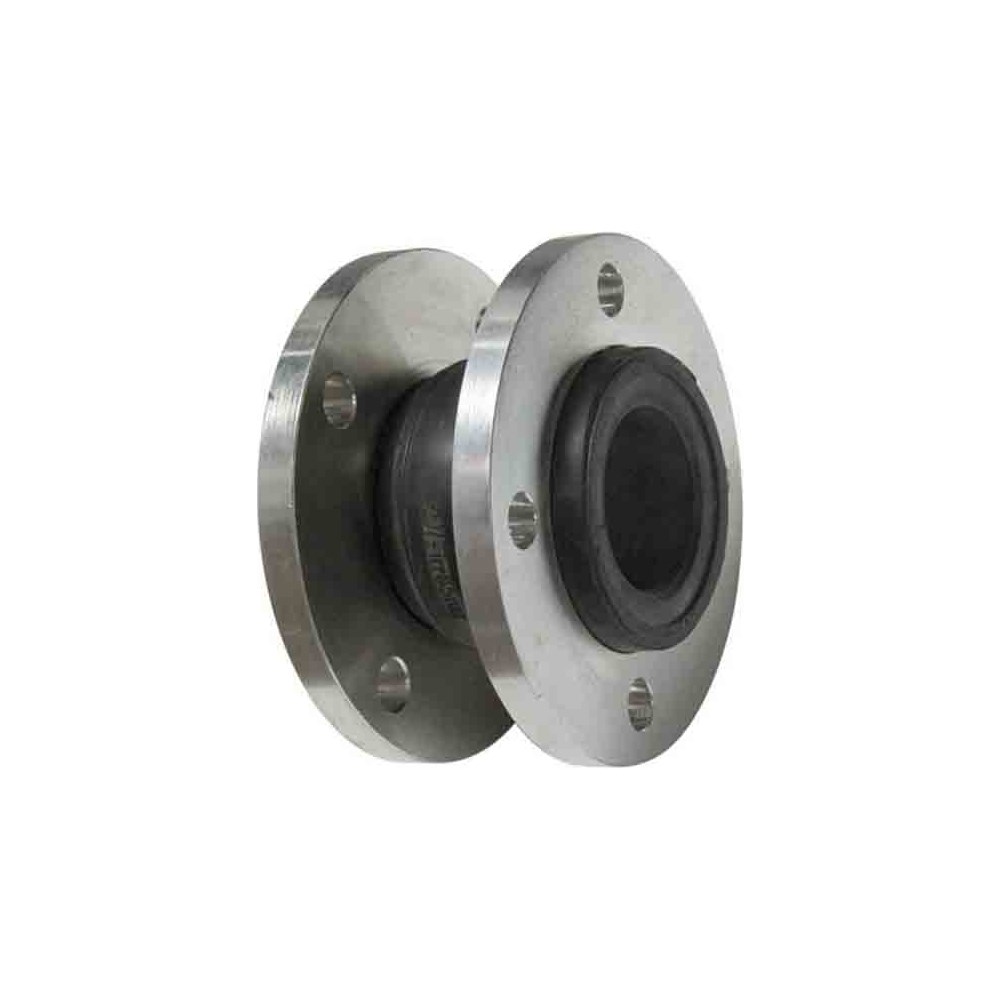

Flexible rubber bellows are used to connect between rigid pipework and pump outlets and cater for vibration, thermal expansion and heat, single sphere bellows come in various materials and the floating flanges are available in plated steel or stainless steel grades 304 and 316 with Table D, Table E, ANSI 150, DIN 16 drillings or a combination of 2 types.
- Single sphere of EPDM rubber
- Flanges are stainless steel grade 316
- Flange pattern - Table E
- Working pressure of 235 psi
- Angular deflection of 15 degree
Applications:
- Water pumping station
- Fire vehicles
- Industrial factories
- Compressed air
- Alkali
