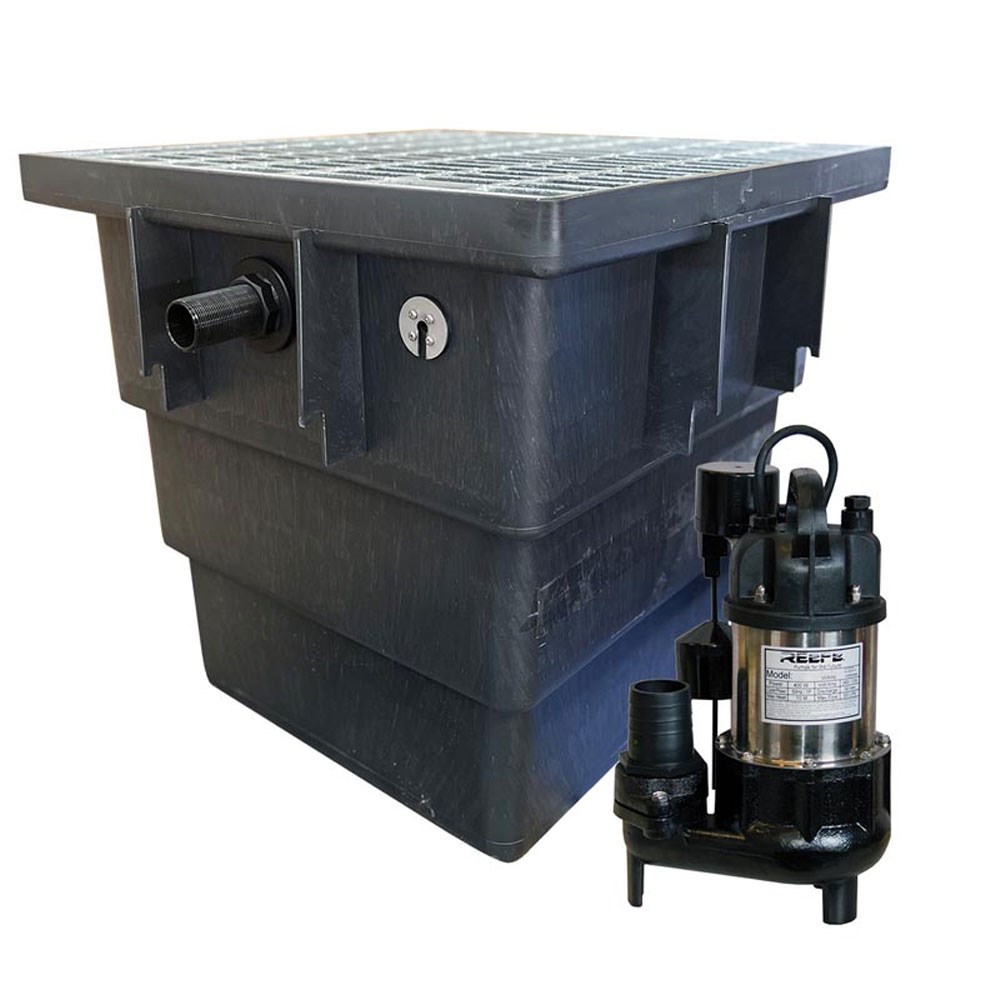

QUBEX MINI 6 STORMWATER PUMP & PIT SYSTEM, Grate & Reefe RVS250VF QSWP230-600

Product Code: PGUAR-22931

PRESSURE PUMP
RRP $1325.37
$1325.37 inc GST
Increase value Decrease value
Quantity In Cart:
Description
A light-duty Polyethylene stormwater pit is ideal for backyards & controlled stormwater collection. These systems are recommended to be installed in Domestic and Residential applicators only.
Features
  • Compact design for easy installation
  • Preassembled – ready to install
  • Can handle up to 40ºC
  • Up to 30mm solids handling
  • Not suitable for raw sewage

Construction
  • 300 Pit = 40L
  • 450 Pit = 85L
  • 600 Pit = 180L
  • Class A Galvanised steel grate
  • Inlet to be installed on-site
  • 1 1/2″ or 2″ MBSP inlet/outlet

Application
  • Pumping Stormwater
  • Stormwater collection and discharge in low-lying backyard areas
  • Building sites and other temporary applications
Technical Specifications
Brand Reefe
Size 715L x 715W x 660H
Cable Length 10m
Maximum Flow (L/MIN) 132 L/min
Maximum Head (M) 6m
Motor - Current Amps 2.8
