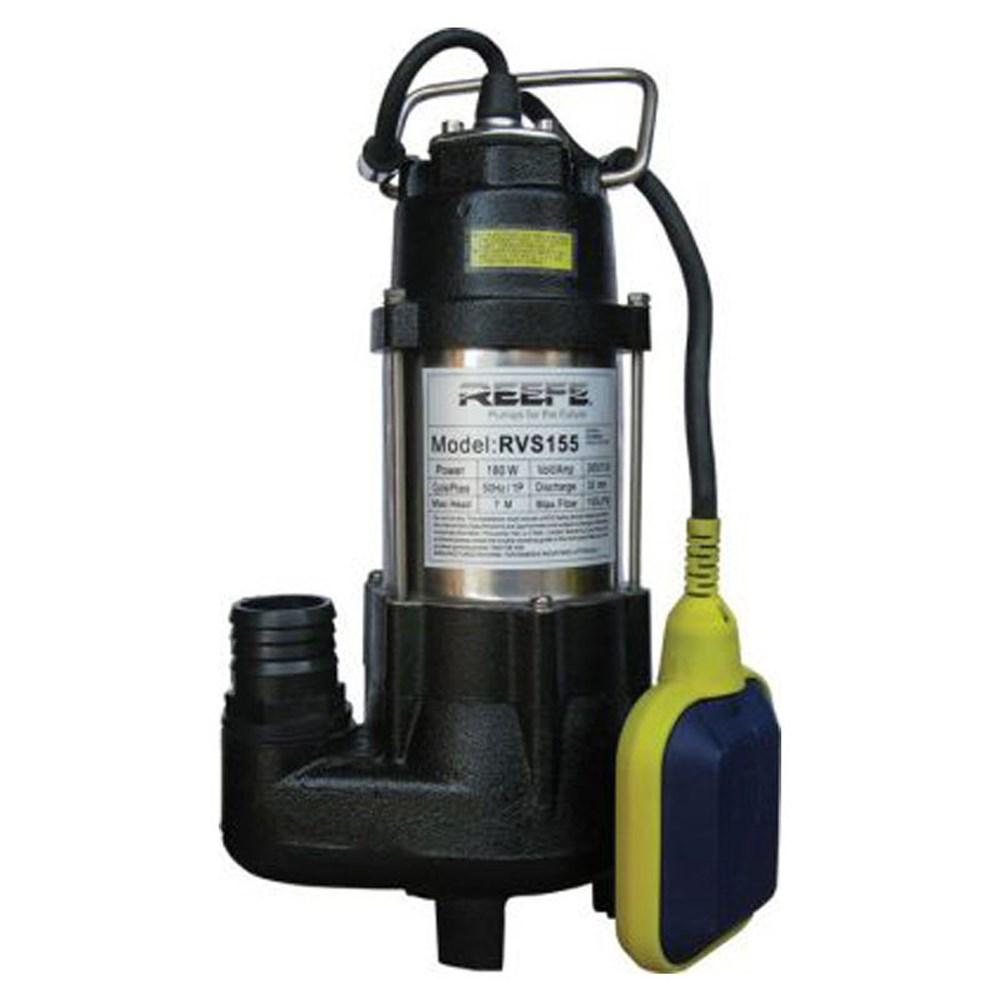

REEFE RVS155VF Sullage Pump w VertFltSw

Product Code: PGUAR-8416

RRP $414.71
$414.71 inc GST
Increase value Decrease value
Quantity In Cart:
Description

The REEFE vortex vertical float pump is the same great quality and performance as the standard RVS range, but with the advantage of the vertical float which makes this more versatile than ever.

Features
  • Low power consumption
  • Thermal overload protection
  • Soft solids handling 15mm (155), 25mm(200),30mm(300)
  • High performance
  • H05RNF 10m power cable
  • Includes hose-tail
  • Maximum liquid temperature 40°C
  • Adjustable “stop” vertical float switch
  • Electrical Safety Approval to AS/NZS 60335.2.41

CONSTRUCTION
  • Stainless steel motor housing & shaft
  • Cast iron vortex impeller (RVS155VF – technopolymer impeller)
  • Dual mechanical seal in oil chamber
  • Cast iron base and outlet
  • Minimum pit dimension 300mm sq (RVS155VF, RVS200VF, RVS250VF)
  • Ingress Protection IP68
  • Insulation Class B – RVS155VF
  • Insulation Class A – RVS200VF, RVS250VF & RVS300VF
APPLICATIONS
  • Wastewater treatment system
  • Confined spaces
  • Small or shallow pits/sumps
  • Narrow irrigation chambers
Technical Specifications
Brand Reefe
Outlet Port 32mm
Size 220 x 190 x 350
Maximum Flow (L/MIN) 155 L/min
Maximum Head (M) 7m
Pump - Flow Rate L/min 90 L/min
Pump - Head, max metres 4m
